High Precision Steel Radial Cylindrical Roller Bearings With Low Noise For Machinery With High Speed

Ask Lasest Price
Brand Name :	NEKIB OR FUMSB
Model Number :	F204782
Certification :	ISO9001,IATF16949
Price :	0.1-100$ one piece
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	300kpcs,30days
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

High Precision Steel Radial Cylindrical Roller Bearings With Low Noise For Machinery With High Speed

High Precision Steel Radial Cylindrical Roller Bearings With Low Noise For Machinery

Products introduction:(Double row full loaded cylindrical roller bearing)

The utility model provides a double row full loaded cylindrical roller bearing, which includes an inner ring and an outer ring. The inner ring is spliced by the first ring and the second ring, and the first ring and the second ring form a raceway respectively with the outer ring. The raceway is filled with rollers, and one end of the first ring toward the second ring is evenly distributed with several clips, and the second ring corresponds to the clips The first ferrule is provided with a first through groove between adjacent ferrules, the second ferrule is provided with a second through groove between adjacent ferrules, the ferrule is communicated with the second through groove, the ferrule can be inserted axially along the second through groove and rotated circumferentially to the position where the ferrule is clamped, the first through groove and the second through groove The fastener is embedded. The utility model provides a double row full loaded cylindrical roller bearing with simple assembly, avoiding abrasion between two ferrules and longer service life.

Catalogue:

Bearing No.	Weight(kg)	d(mm)	Dr(mm)	B(mm)
F-227932	0.12	20	36	30
F-219593	0.144	25	42	30
F-204045	0.27	30	49	34
F-219590	0.28	35	55	36
F-123243	0.4	45	66	40
F-210408	0.46	50	72	40
HS-262	0.86	55	83	46
RNNX22AV	0.895	60	86	46
F-2440.326	0.94	65	93	46
RNN3005X3V	1.12	70	100	54
F-217615	1.35	75	107	54
F-210304	1.8	80	116	60
RNN306X3V	1.85	85	121	60
F-3246.628	2.6	90	130	67
F-208098	2.6	100	139	67
RNN3007X3V	3.95	110	156	80
F-385328	4.52	120	167	80
HS-263	6.7	130	183	95
RNNX10V	7.914	140	197	95
F-237005	8.215	150	206	100
F-229575.1	11.09	160	224	109
567079B	15.6	170	242	122

Drawing:

Feature:

外形尺寸(mm)					额定负荷		极限	重量	轴承代号 Bearing code

Dimension					(kN)		转速 Limiting speed	(kg)

					Rated load		(r/min)*	Weight


d	D	C	B	Rs(min)	Cr	Cor			FUMS	INA
95	145	66	67	0.6	303	570	900	3.95	NNF5019-2LSNVY	SL045019PPX
100	150	66	67	0.6	308	570	850	4.05	NNF5020-2LSNVY	SL045020PPX
110	170	79	80	0.6	380	695	750	6.45	NNF5022-2LSNVY	SL045022PPX
120	180	79	80	0.6	402	750	700	6.9	NNF5024-2LSNVY	SL045024PPX
130	200	94	95	0.6	572	1040	630	10.5	NNF5026-2LSNVY	SL045026PPX
140	210	94	95	0.6	594	1120	600	11	NNF5028-2LSNVY	SL045028PPX
150	225	99	100	0.6	693	1290	560	13.5	NNF5030-2LSNVY	SL045030PPX
160	240	108	109	0.6	721	1400	500	16.5	NNF5032-2LSNVY	SL045032PPX
170	260	121	122	0.6	935	1800	480	22.5	NNF5034-2LSNVY	SL045034PPX
180	280	135	136	0.6	1080	2120	450	30	NNF5036-2LSNVY	SL045036PPX
190	290	135	136	0.6	1100	2200	430	31.5	NNF5038-2LSNVY	SL045038PPX
200	310	149	150	0.6	1340	2900	400	42	NNF5040-2LSNVY	SL045040PPX
220	340	159	160	1	1510	3100	360	53.5	NNF5044-2LSNVY	SL045044PPX
240	360	159	160	1	1570	3350	340	57.5	NNF5048-2LSNVY	SL045048PPX

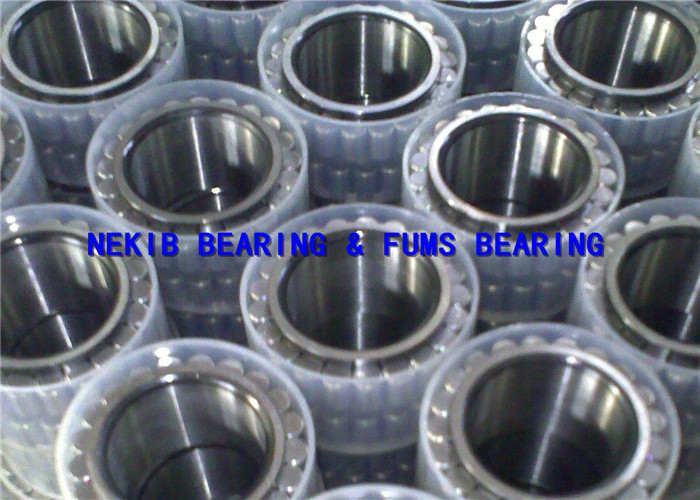

Product pictures:
