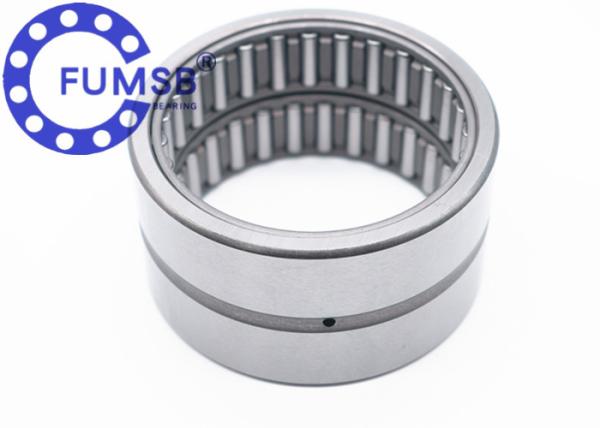

High Speed Single Row Steel Needle Roller Bearing NK15 16 OEM Service

Ask Lasest Price
Brand Name :	NEKIB OR FUMSB
Model Number :	NKI
Certification :	ISO9001,IATF16949
Price :	0.1-100$ one piece
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	300kpcs,30days
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

High Speed Single Row Steel Needle Roller Bearing NK15 16 OEM Service

RNA,NK,NA,NKI,Solid collar needle roller bearing with high speed,With&Without Inner Ring

Description:

The solid collar needle roller bearing has compact structure, small radial size and large load carrying capacity, It is suitable for the parts of which the radial overall size is limited, It is also wide applied to the situation where the shaft or housing has the swinging motion. In general, the needle roller bearing only withstands the radial load, not the axial load. When the shaft has axial load,it can be used in combination with other bearings.However it does not limit the axial shift of shaft or housing. The limiting rotational speed of needle roller bearing is lower In high rotational speed of main machine, the needle roller bearing with cage shall be chosen as far as possible. In compassion with other types of needle roller bearings, under the situation of same radial size, the needle roller bearing has the large load carrying capacity and high rigidity but has high friction torque.

This kind of bearing has many series with different structure and size. It is requested that the hardness,processing accuracy and surface roughness of shaft journal surface and rolling surface of outer housing be same as those of the collar of bearing. As for the needle roller with G2 class, the diameter varies within 2um in group. Except the full complement needle roller bearings, they have the rigid cages, Which can correctly guide the parallel axis line of needle roller.

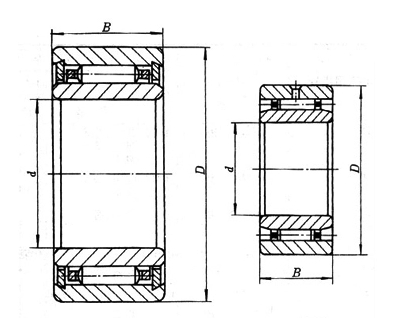

Drawings and parameters:

No inner ring solid ferrule needle bearing RNA, NK series.

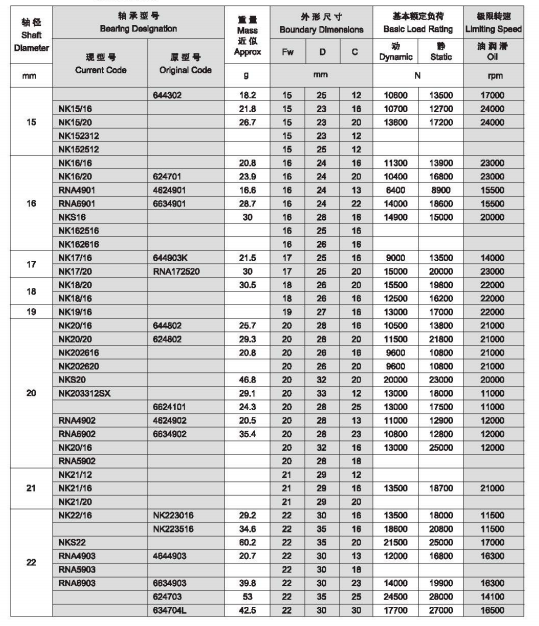

Catalogue:

Shaft diameter	Model	Boundary Dimensions				Basic load rating		Limiting speed
		FW	D	C	rS	dynamic	static	oil

						C	Co
mm		mm			Min.	N		rpm
29	NK29/20	29	38	20	0.3	21900	34000	15000
	NK29/30	29	38	30	0.3	32500	57000	15000
30	NK30/20	30	40	20	0.3	22600	36000	15000
	NK30/30	30	40	30	0.3	33500	60000	15000
	NKS30	30	45	22	0.6	32000	40000	14000
	RNA4905	30	42	17	0.3	23600	31500	14000
	RNA6905	30	42	30	0.3	39000	59000	14000
32	NK32/20	32	42	20	0.3	23100	37500	14000
	NK32/30	32	42	30	0.3	34500	63000	14000
	NKS32	32	47	22	0.6	33500	43500	13000
	RNA49/28	32	45	17	0.3	24400	33500	14000
	RNA69/28	32	45	30	0.3	40500	63000	14000
35	NK 35/20	35	45	20	0.3	24300	41500	13000
	NK 35/30	35	45	30	0.3	36500	69000	13000
	NKS35	35	50	22	0.6	35000	47000	12000
	RNA4906	35	47	17	0.3	25000	35500	13000
	RNA6906	35	47	30	0.3	43500	71000	13000
37	NK 37/20	37	47	20	0.3	24900	43500	12000
	NK 37/30	37	47	30	0.3	37000	73000	12000
	NKS37	37	52	22	0.6	36500	50000	12000
38	NK 38/20	38	48	20	0.3	25500	45000	12000
	NK 38/30	38	48	30	0.3	38000	76000	12000
40	NK 40/20	40	50	20	0.3	26000	47000	11000
	NK 40/30	40	50	30	0.3	39000	79000	11000
	NKS40	40	55	22	0.6	38000	54000	11000
	RNA49/32	40	52	20	0.6	30500	47500	11000
	RNA69/32	40	52	36	0.6	47000	82000	11000
42	NK 42/20	42	52	20	0.3	26500	49000	11000
	NK 42/30	42	52	30	0.3	39500	82000	11000
	RNA4907	42	55	20	0.6	31500	50000	11000
	RNA6907	42	55	36	0.6	48000	86000	11000
43	NK 43/20	43	53	20	0.3	27000	51000	11000
	NK 42/30	43	53	30	0.3	40500	85000	11000
	NKS43	43	58	22	0.6	39000	57000	10000
45	NK 45/20	45	55	20	0.3	27500	53000	10000
	NK 45/30	45	55	30	0.3	41000	88000	10000
	NKS45	45	60	22	0.6	40500	60000	10000
47	NK 47/20	47	57	20	0.3	28500	56000	10000
	NK 47/30	47	57	30	0.3	43000	94000	10000
48	RNA4908	48	62	22	0.6	43000	67000	9000
	RNA6908	48	62	40	0.6	66000	116000	9000
50	NK 50/25	50	62	25	0.6	38000	74000	9000
	NK 50/35	50	62	35	0.6	55000	106000	9000
	NKS50	50	65	22	1	42500	67000	9000
52	RNA4909	52	68	22	0.6	45000	73000	8500
	RNA6909	52	68	40	0.6	69000	127000	8500
55	NK 55/25	55	68	25	0.6	40000	82000	8500
	NK 55/35	55	68	35	0.6	53000	118000	8500
	NKS55	55	72	22	1	45000	74000	8000
58	RNA4910	58	72	22	0.6	47000	80000	8000
	RNA6910	58	72	40	0.6	73000	139000	8000
60	NK 60/25	60	72	25	0.6	42000	90000	7500
	NK 60/35	60	72	35	0.6	56000	130000	7500
	NKS60	60	80	28	1.1	63000	98000	7500
63	RNA4911	63	80	25	1	58000	100000	7000
	RNA6911	63	80	45	1	90000	176000	7000
65	NK 65/25	65	78	25	0.6	44000	98000	7000
	NK 65/35	65	78	35	0.6	59000	142000	7000
	NKS65	65	85	28	1.1	67000	108000	7000
68	NK 68/25	68	82	25	0.6	43500	89000	7000
	ML 68/35	68	82	35	0.6	62000	139000	7000
	RNA4912	68	85	25	1	60000	108000	6500
	RNA6912	68	85	45	1	94000	191000	6500
70	NK 70/25	70	85	25	0.6	44500	92000	6500
	NK 70/35	70	85	35	0.6	63000	144000	6500
	NKS70	70	90	28	1.1	68000	113000	6500
72	RNA4913	72	90	25	1	61000	112000	6500
	RNA6913	72	90	45	1	95000	198000	6500
73	NK 73/25	73	90	25	1	53000	100000	6500
	NK 73/35	73	90	35	1	75000	156000	6500
75	NK 75/25	75	92	25	1	54000	104000	6000
	NK 75/35	75	92	35	1	77000	162000	6000
	NKS75	75	95	28	1.1	71000	123000	6000
80	NK 80/25	80	95	25	1	56000	119000	6000
	NK 80/35	80	95	35	1	78000	184000	6000
	NKS80	80	100	28	1.1	75000	133000	5500
	RNA4914	80	100	30	1	84000	156000	5500
	RNA6914	80	100	54	1	128000	265000	5500

and so on.
