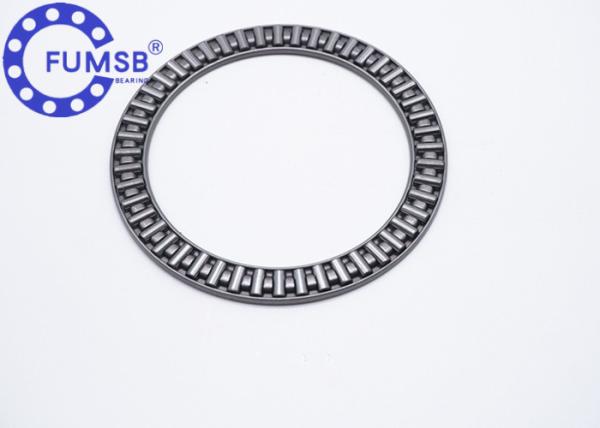

Single Row Needle Roller Thrust Bearing AXK160200 For Hotels Garment Shops

Ask Lasest Price
Brand Name :	NEKIB OR FUMSB
Model Number :	AXK160200
Certification :	ISO9001,IATF16949
Price :	0.1-100$ one price
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	300kpcs,30days
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Single Row Needle Roller Thrust Bearing AXK160200 For Hotels Garment Shops

Single Row Thrust Needle Roller Bearing manufacturer AXK160200 for Hotels/Garment Shops/Building Material Shops

Needle bearing Specifications:
1) Needle bearing type: AXK,NTA,TC,AS,LS,GS,51100,K81101,TRA,TRB,TRC,TRD
2) with oil hole
3) Material: Chrome/Stainless steel
4) Shield/closure: Open
5) Precision : ABEC-1 (P0), ABEC-3 (P6),ABEC-5(P5)
6) Vibration and Noise level : V2, V1, Z1, Z2
7) Internal clearance: C0, C2, C3
8) Packing: industrial packing or individual box packing, carton, pallet .

Drawing:

Catalogue:

	Thrust needle roller bearing		Thrust bearing washer						size								Raceway size		Basic rated loadBasic rated load		Limit speed
Shaft	Axial Needle Roller and Cage Assemblies																		Basic Load Rating		Limiting
Diameter	model	Mass g	Thrust bearing washer						Dimension								Track size		KN		Speed
mm	Code		Bearing washer code	weight	Axial circle code		Seat number	weight	Dcl	D1	Dc	d1	Dw	B1	B	a	Eb	Ea	C	CO	r/min
			Bearing washer code	Mass			Axial Bearing Washer	Mass
			Bearing washer	g	Shaft Ring	Seat Ring		g	d		D					r min
4	AXK0414TN	0.7	AS0414	1	—	—	—	—	4	—	14	—	2	1	—	—	5	13	4.4	8	21000
5	AXK0515TN	0.8	AS0515	1	—	—	—	—	5	—	15	—	2	1	—	—	6	14	4.75	9.2	21000
6	AXK0619TN	1	AS0619	2	LS0619	—	—	4	6	—	19	—	2	1	2.75	0.3	7	18	6.8	15.5	19000
8	AXK0821TN	2	AS0821	2	LS0821	—	—	4	8	—	21	—	2	1	2.75	0.3	9	20	7.8	19.4	18000
10	AXK1024	3	AS1024	3	LS1024	—	—	7	10	—	24	—	2	1	2.75	0.3	12	23	9.2	25.5	17000
12	AXK1226	3	AS1226	3	LS1226	—	—	8	12	—	26	—	2	1	2.75	0.3	14	25	9.9	29	15000
15	AXK1528	4	AS1528	3	LS1528	GS81102	WS81102	9	15	16	28	28	2	1	2.75	0.3	17	27	11.3	36	13000
17	AXK1730	4	AS1730	4	LS1730	GS81103	WS81103	9	17	18	30	30	2	1	2.75	0.3	19	29	11.9	39.5	12000
20	AXK2035	5	AS2035	5	LS2035	GS81104	WS81104	13	20	21	35	35	2	1	2.75	0.3	22	34	13.1	46.5	10000
25	AXK2542	7	AS2542	7	LS2542	GS81105	WS81105	19	25	26	42	42	2	1	3	0.6	29	41	14.7	58	8500
30	AXK3047	8	AS3047	8	LS3047	GS81106	WS81106	22	30	32	47	47	2	1	3	0.6	34	46	16.3	70	7500
35	AXK3552	10	AS3552	9	LS3552	GS81107	WS81107	29	35	37	52	52	2	1	3.5	0.6	39	51	17.8	81	6500
40	AXK4060	16	AS4060	12	LS4060	GS81108	WS81108	40	40	42	60	60	3	1	3.5	0.6	45	58	28	114	6000
45	AXK4565	18	AS4565	13	LS4565	GS81109	WS81109	50	45	47	65	65	3	1	4	0.6	50	63	30	128	5000
50	AXK5070	20	AS5070	14	LS5070	GS81110	WS81110	55	50	52	70	70	3	1	4	0.6	55	68	32	143	4800
55	AXK5578	28	AS5578	18	LS5578	GS81111	WS81111	88	55	57	78	78	3	1	5	0.6	60	76	38	186	4300
60	AXK6085	33	AS6085	22	LS6085	GS81112	WS81112	97	60	62	85	85	3	1	4.75	1	65	83	44.5	234	4000
65	AXK6590	35	AS6590	24	LS6590	GS81113	WS81113	115	65	67	90	90	3	1	5.25	1	70	88	46.5	255	3700
70	AXK7095	60	AS7095	25	LS7095	GS81114	WS81114	123	70	72	95	95	4	1	5.25	1	74	93	54	255	3500
75	AXK75100	61	AS75100	27	LS75100	GS81115	WS81115	142	75	77	100	100	4	1	5.75	1	79	98	55	265	3300
80	AXK80105	63	AS80105	28	LS80105	GS81116	WS81116	151	80	82	105	105	4	1	5.75	1	84	103	56	280	3100
85	AXK85110	67	AS85100	29	LS85110	GS81117	WS81117	159	85	87	110	110	4	1	5.75	1	89	108	58	290	3000
90	AXK90120	86	AS90120	39	LS90120	GS81118	WS81118	234	90	92	120	120	4	1	6.5	1	94	118	73	405	2700
100	AXK100135	104	AS100135	50	LS100135	GS81120	WS81120	350	100	102	135	135	4	1	7	1	105	133	91	560	2500
110	AXK110145	122	AS110145	55	LS110145	GS81122	WS81122	385	110	112	145	145	4	1	7	1	115	143	97	620	2300
120	AXK120155	131	AS120155	59	LS120155	GS81124	WS81124	415	120	122	155	155	4	1	7	1	125	153	102	680	2100
130	AXK130170	205	AS130170	65	LS130170	GS81126	WS81126	663	130	132	170	170	5	1	9	1	136	167	133	840	1900
140	AXK140180	219	AS140180	79	LS140180	GS81128	WS81128	749	140	142	180	178	5	1	9.5	1	146	177	138	900	1800
150	AXK150190	232	AS150190	84	LS150190	GS81130	WS81130	796	150	152	190	188	5	1	9.5	1	156	187	143	960	1700
160	AXK160200	246	AS160200	89	LS160200	GS81132	WS81132	842	160	162	200	198	5	1	9.5	1	166	197	145	1020	1600
