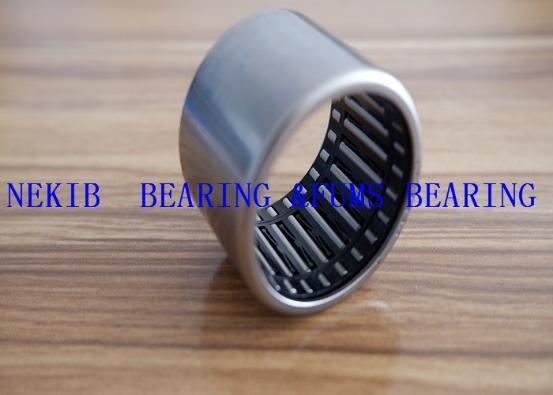

Bearing Steel One Way Needle Roller Bearing Single Row Overrunning Clutch Drawn Cup Needle Roller Clutch

    Buy cheap Bearing Steel One Way Needle Roller Bearing Single Row Overrunning Clutch Drawn Cup Needle Roller Clutch from wholesalers

    Buy cheap Bearing Steel One Way Needle Roller Bearing Single Row Overrunning Clutch Drawn Cup Needle Roller Clutch from wholesalers
    • Buy cheap Bearing Steel One Way Needle Roller Bearing Single Row Overrunning Clutch Drawn Cup Needle Roller Clutch from wholesalers
    • Buy cheap Bearing Steel One Way Needle Roller Bearing Single Row Overrunning Clutch Drawn Cup Needle Roller Clutch from wholesalers
    • Buy cheap Bearing Steel One Way Needle Roller Bearing Single Row Overrunning Clutch Drawn Cup Needle Roller Clutch from wholesalers
    • Buy cheap Bearing Steel One Way Needle Roller Bearing Single Row Overrunning Clutch Drawn Cup Needle Roller Clutch from wholesalers
    • Buy cheap Bearing Steel One Way Needle Roller Bearing Single Row Overrunning Clutch Drawn Cup Needle Roller Clutch from wholesalers

    Bearing Steel One Way Needle Roller Bearing Single Row Overrunning Clutch Drawn Cup Needle Roller Clutch

    Ask Lasest Price
    Brand Name : NEKIB OR FUMSB
    Model Number : HFL3530
    Certification : ISO9001,IATF16949
    Price : 0.1-100$ one piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300kpcs,30days
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Bearing Steel One Way Needle Roller Bearing Single Row Overrunning Clutch Drawn Cup Needle Roller Clutch

    HFL3530,HK0509,HK0608,HK0609,Bk0509,Bk0609,One-way needle roller bearing for construction machinery(drawn cup needle roller clutch)

    One - way bearing is a kind of bearing which can rotate freely in one direction and lock in the other direction.One-way bearing is also called overrunning clutch, but according to the industry, the role of different to name.The metal case of a one-way bearing contains a number of rollers, needles, or balls, and the shape of the roller seat (socket) causes it to roll only in one direction and to cause a great deal of resistance in the other (" one-way ").

    Bearing Steel One Way Needle Roller Bearing Single Row Overrunning Clutch Drawn Cup Needle Roller ClutchBearing Steel One Way Needle Roller Bearing Single Row Overrunning Clutch Drawn Cup Needle Roller Clutch

    Shaft Diameter Mass Approx Torgue Ma
    Clutch Designation Borndary Dimensions Limiting Speed Suitable Drawn Cup Bearings
    Fw D C Rotating Shaft Min-1 Rotatng Outer Ring Min-1
    mm Plastic Springs Steel Springs g mm Nm rpm
    HF series( INA )
    3 HF0306KF 0.9 3 6.5 6 0.2 36000 7000 HK0306TN
    4 HF0406KF -- 1 4 8 6 0.34 34000 8000 HK0408TN
    HF0406KFR -- 1 4 8 6 0.1 34000 8000 HK0408TN
    6 HF0608KF 2.8 6 10 8 1.5 20000 11000 HK0608
    HF0612KF HF0612 3 6 10 12 1.76 23000 13000 HK0608
    HF0612KFR HF0612R 3 6 10 12 1.76 23000 13000 HK0608
    HF061210 3.5 6 12 10 3 20000 13000 HK061208
    8 HF0812KF HF0812 3.5 8 12 12 3.15 17000 12000 HK0808
    HF0812KFR HF0812R 3.5 8 12 12 4 17000 12000 HK0808
    -- HF061210 3.2 8 12 10 3 16000 12000 HK0808
    -- HF081410 3.6 8 14 10 4.6 15000 11000 HK081410
    -- HF081610 4.1 8 16 10 5.5 15000 11000 HK081610
    -- HF081412 4 8 14 12 5 16000 12000 HK081410
    10 HF1012KF HF1012 4 10 14 12 5.3 14000 11000 HK1010
    HF1012KFR HF1012R 4 10 14 12 1.5 14000 11000 HK1010
    12 -- HF1216 11 12 18 16 12.2 11000 8000 HK1212
    14 -- HF1416 13 14 20 16 17.3 9500 8000 HK1412
    16 -- HF1616 14 16 22 16 20.5 8500 7500 HK1612
    18 -- HF1816 16 18 24 16 24.1 7500 7500 HK1812
    20 -- HF2016 17 20 26 16 28.5 7000 6500 HK2010
    25 -- HF2520 30 25 32 20 66 5500 5500 HK2512
    30 -- HF3020 36 30 37 20 90 4500 4500 HK3012
    35 -- HF3520 40 35 42 20 121 3900 3900 HK3512

    Note 1: The one-way bushing cage is made of nylon; KF means that the spring piece on the cage is made of nylon, and the KF means that the spring piece on the cage is stainless steel;

    Note 2: R indicates the bearing outer ring knurling to increase the bite force;

    Model Weight Main dimensions
    Fw D C Rotational moment
    Torrington& NSK
    FC4K 1 4 8 6 0.34
    FC6 3 6 10 12 1.76
    FC6K 3 6 10 12 1.76
    FC8 4 8 14 12 5.3
    FCL8K 3.5 8 12 12 5
    FC10 4.8 10 16 12 6
    FCL10K 4 10 14 12 5.3
    FC12 11 12 18 16 12.2
    FC14K 13 14 20 16 17.3
    FC16 14 16 22 16 20.5
    FC20 17 20 26 16 28.5
    FC25 30 25 32 20 66
    FC30 36 30 37 20 90
    FC35 40 35 42 20 121
    FCB8 10 14 14 20 5
    FCB10 15 16 16 20 10
    FCB12 18 18 18 26 12.2
    FCB16 22 22 22 26 20.5
    FCB20 27 26 26 26 28.5
    FCB25 44 32 32 30 66
    FCB30 51 37 37 30 90
    FCB35 58 42 42 30 121

    Model Weight Main dimensions
    Fw D C Rotational moment
    Torrington & NSK
    RC040708 3.5 6.35 11.112 12.7 1.9
    RC040708-FS 3.5 6.35 11.112 12.7 1.9
    RC061008 4.7 9.525 15.875 12.7 4.83
    RC061008-FC 4.7 9.525 15.875 12.7 4.83
    RC081208 9.2 12.7 19.05 12.7 7.9
    RC081208-FS 9.2 12.7 19.05 12.7 7.9
    RC101410 14.5 15.875 22.225 15.88 15.4
    RC101410-FC 14.5 15.875 22.225 15.88 15.4
    RC121610 17 19.05 25.4 15.88 20.9
    RC121610-FS 17 19.05 25.4 15.88 20.9
    RC162110 16.2 25.4 33.338 15.88 45
    RC162110-FC 16.2 25.4 33.338 15.88 45
    RCB061014 12 9.525 15.875 22.22 4.83
    RCB061014-FS 12 9.525 15.875 22.22 4.83
    RCB081214 16 12.7 19.05 22.22 7.9
    RCB081214-FC 16 12.7 19.05 22.22 7.9
    RCB101416 21.3 15.875 22.225 25.4 15.4
    RCB101416-FS 21.3 15.875 22.225 25.4 15.4
    RCB121616 26.5 19.05 25.4 25.4 20.9
    RCB121616-FC 26.5 19.05 25.4 25.4 20.9
    RCB162117 44.8 25.4 33.338 26.99 45
    RCB162117-FS 44.8 25.4 33.338 26.99 45

    Bearing Steel One Way Needle Roller Bearing Single Row Overrunning Clutch Drawn Cup Needle Roller Clutch

    boundary dimensions
    shaft dia. torque capacity
    d Fw D1 D2 B A
    mm mm N.m Kg.cm
    4 4 8 8.4 6 2.6 0.08 0.82
    4 8 8.4 6 2.6 0.15 1.53
    6 6 10 10.4 8 2.8 0.25 2.55
    6 10 10.4 8 2.8 0.44 4.49
    6 10 10.4 8 2.8 0.44 4.49
    6 10 10.4 12 2.8 0.88 8.98
    8 8 12 12.4 9 2.6 0.49 5
    8 12 12.4 9 2.6 0.88 8.98
    8 14.2 15 12 3.6 1.18 12.04
    8 14.2 15 12 3.6 1.96 20
    8 14.2 15 12 3.6 1.96 20
    8 14.2 15 14.5 3.6 2.65 27.04
    10 10 16 17 10 5 1.18 12.04
    10 16 17 10 5 1.96 20
    10 16 17 12 5 1.37 13.98
    10 16 17 12 5 2.35 23.98
    10 16 17 12 5 2.35 23.98
    12 12 18 19 16 5.1 6.28 64.08


    Bearing Steel One Way Needle Roller Bearing Single Row Overrunning Clutch Drawn Cup Needle Roller Clutch
