B206 Series Backstop Cam Clutch 25 To 42 Mm Width 1 Way Clutch Light Weight Drawn Cup Needle Roller Clutch

Ask Lasest Price
Brand Name :	NEKIB OR FUMSB
Model Number :	B206
Certification :	ISO9001,IATF16949
Price :	0.1-100$ one piece
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	300kpcs,30days
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

B206 Series Backstop Cam Clutch 25 To 42 Mm Width 1 Way Clutch Light Weight Drawn Cup Needle Roller Clutch

High precision Chrome Steel One way clutches B206 Backstop Cam Clutch(drawn cup needle roller clutch)

Decription of products:(drawn cup needle roller clutch)

One-way clutch is composed of outer seat ring, inner seat ring, retainer, wedge block, etc.When the inner seat ring is fixed, the outer seat ring rotates the wedge clockwise without locking, and the outer seat ring can rotate freely.When the outer seat turns counterclockwise, the wedge lock, the outer seat cannot rotate.

The purpose of the cage is to make the wedge always tilt slightly in the direction of the locking outer ring to enhance the locking function of the wedge.

Item	B200 Series
Material	GCr15
Bore dia.	16.51-79.356 mm
Outer dia.	40-125 mm
Width	25-42 mm
Torque capacity	39.2-1390 N.m
Weight	0.23-2.4kg
Package	Carton box, wooden box or as your requirements

Drawing:(drawn cup needle roller clutch)

Catalogue:(drawn cup needle roller clutch)

Model	Torque Capacity (N.m)	Drag Torque (N.m)	Max .Overrunning (r/min)		Max.Idexing (cycle/min)	A(+0 to -0.6)	B	Keyway	With JIS Bearing No.	Shaft Dia. C(+0 to -0.025)	Weight (kg)
Model	Torque Capacity (N.m)	Drag Torque (N.m)	Shaft	Outer Race	Max.Idexing (cycle/min)	A(+0 to -0.6)	B	Keyway	With JIS Bearing No.	Shaft Dia. C(+0 to -0.025)	Weight (kg)
B203	39.2	0.10	2400	500	150	25.0	40(-0.014-0.039)	4X2.5	6203	16.510	0.23
B204	58.8	0.10	2400	500	150	25.0	47(-0.014-0.039)	5X3	6204	18.796	0.34
B205	98	0.20	1800	400	150	25.0	52(0.017-0.042)	5X3	6205	23.622	0.45
B206	235	0.20	1800	350	150	28.0	62(-0.017-0.042)	7X4	6206	32.766	0.68
B207	372	0.20	1800	300	150	28.0	72(-0.017-0.042)	7X4	6207	42.088	0.80
B208	549	0.20	1800	200	150	32.0	80(-0.017-0.042)	10X4.5	6208	46.761	0.91
B209	549	0.20	1800	200	150	32.0	85(-0.020-0.045)	10X4.5	6209	46.761	0.95
B210	784	0.29	1200	200	150	32.0	90(-0.020-0.045)	10X4.5	6210	56.109	1.00
B211	784	0.29	1200	200	150	32.0	100(-0.020-0.050)	10X4.5	6211	56.109	1.40
B212	1230	0.29	1200	180	150	42.0	110(-0.020-0.050)	10X4.5	6212	70.029	1.80
B213	1230	0.29	1200	180	150	42.0	120(-0.020-0.050)	10X4.5	6213	70.029	2.30
B214	1390	0.39	180	180	150	42.0	125(-0.024-0.060)	12X4.5	6214	79.356	2.4

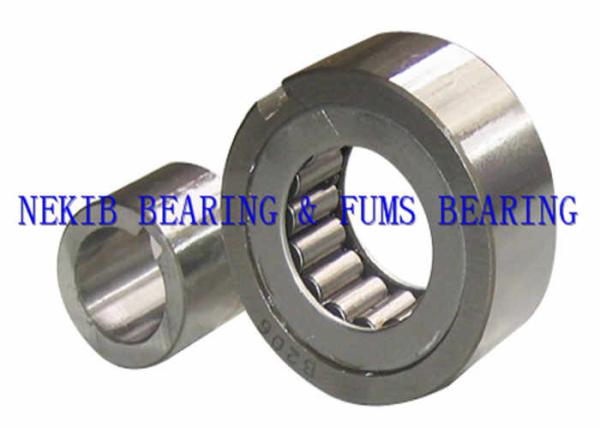

Picture:(drawn cup needle roller clutch)
