Sealed Bearing Steel Sprag Type One Way Clutch DC3175 On Machinery 84836000 Drawn Cup Needle Roller Clutch

Ask Lasest Price
Brand Name :	NEKIB OR FUMSB
Model Number :	DC3175(3C)
Certification :	ISO9001,IATF16949
Price :	0.1-100$ one piece
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	300kpcs,30days
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Sealed Bearing Steel Sprag Type One Way Clutch DC3175 On Machinery 84836000 Drawn Cup Needle Roller Clutch

Sealed Bearing Steel One way clutches DC3175(3C) Sprag Clutch on Machinery(drawn cup needle roller clutch)

Decription of products:(drawn cup needle roller clutch)

One-way clutch is composed of outer seat ring, inner seat ring, retainer, wedge block, etc.When the inner seat ring is fixed, the outer seat ring rotates the wedge clockwise without locking, and the outer seat ring can rotate freely.When the outer seat turns counterclockwise, the wedge lock, the outer seat cannot rotate.

The purpose of the cage is to make the wedge always tilt slightly in the direction of the locking outer ring to enhance the locking function of the wedge.

Model	DC3175(3C)
Bore size (mm)	31.75
Outer Dia.(mm)	48.41
Thickness (mm)	13.5
Torque (Nm)	127
Weight (g)	0.06

Catalogue:(drawn cup needle roller clutch)

Size		Overrunning speeds		Øa	Øc	Sprag space	emin	Ødmin	Øbmax	Number of clips	Number of sprags	Weight
				+ 0,008	± 0,013
				- 0,005
	TKN1[Nm]	nimax [min-1]	Namax2 [min-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]			[kg]
DC2222G	63	8600	4300	22.225	38.885	8.33	10	50	15	-	12	0.03
DC2776	119	6900	3400	27.762	44.422	8.33	13.5	58	18	-	14	0.055
DC3034	124	6300	3100	30.34	47	8.33	13.5	62	20	-	14	0.06
DC3175(3C)	159	6000	3000	31.75	48.41	8.33	13.5	63	24	3	16	0.06
DC3809A	275	5000	2500	38.092	54.752	8.33	16	71	29	-	18	0.085
DC4127(3C)	224	4600	2300	41.275	57.935	8.33	13.5	75	32	3	18	0.09
DC4445A	363	4300	2100	44.45	61.11	8.33	16	79	34	-	20	0.095
DC4972(4C)	306	3800	1900	49.721	66.381	8.33	13.5	86	38	4	22	0.1
DC5476A	525	3500	1700	54.765	71.425	8.33	16	92	42	-	24	0.11
DC5476A(4C)	525	3500	1700	54.765	71.425	8.33	16	92	42	4	24	0.13
DC5476B(4C)	769	3500	1700	54.765	71.425	8.33	21	92	42	4	24	0.18
DC5476C(4C)	990	3500	1700	54.765	71.425	8.33	25.4	92	42	4	24	0.2
DC5776A	604	3300	1600	57.76	74.42	8.33	16	98	44	-	26	0.11
DC6334B	806	3000	1500	63.34	80	8.33	21	104	50	-	26	0.175
DC7221(5C)	675	2600	1300	72.217	88.877	8.33	13.5	115	56	5	30	0.14
DC7221B	1279	2600	1300	72.217	88.877	8.33	21	115	56	-	30	0.185
DC7221B(5C)	1279	2600	1300	72.217	88.877	8.33	21	115	56	5	30	0.21
DC7969C(5C)	2038	2400	1200	79.698	96.358	8.33	25.4	124	61	5	34	0.28
DC8334C	2055	2300	1100	83.34	100	8.33	25.4	132	65	-	34	0.27
DC8729A	1250	2200	1100	87.29	103.96	8.33	16	134	67	-	34	0.165
DC10323A(3C)*	1612	1800	900	103.231**	119.891	8.33	16	155	80	3	40	0.205
DC12334C*	4800	1500	750	123.34	140	8.33	25.4	184	96	-	50	0.4
DC12334C*	4800	1500	750	**	140	8.33	25.4	184	96	-	50	0.4
DC12388C(11C)	4875	1500	750	123.881	142.88	9.5	25.4	196	96	11	44	0.4

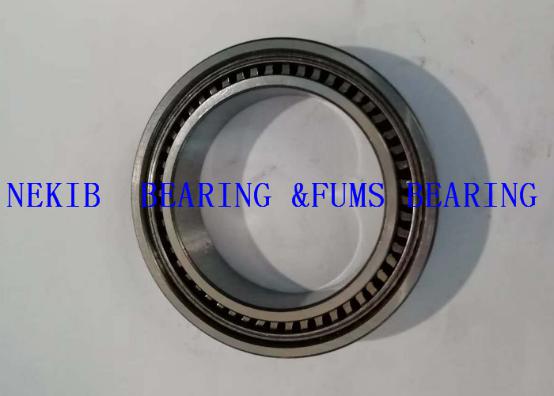

Picture:(drawn cup needle roller clutch)
