Long Life Durable Full Complement Cylindrical Roller Bearings SL05018E 8482500090

Ask Lasest Price
Brand Name :	NEKIB OR FUMSB
Model Number :	SL05018E
Certification :	ISO9001,IATF16949
Price :	0.1-100$ one piece
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	300kpcs,30days
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Long Life Durable Full Complement Cylindrical Roller Bearings SL05018E 8482500090

Long Life /durable full complement roller bearing SL05018E for Engineering machinery/port machinery of the pulley

Products introduction:

Cylindrical roller bearing SL series with single seal or double seals are double row sealed bearings. One row of rollers and outer ring can be assembled as one non-separatable part. Cylindrical rollers are guided by the rib of inner ring. Outer ring has a solid rib, two locating slots on the outer surface with a lock ring which easily locate the bearing axially. The bearing housing width is usually smaller than that of the bearing to reduce required room in the axial direction. As locating bearings, this type of bearing can accommodate axial load in both directions with bigger width, it can also accommodate upsetting momet.

Catalogue:

Locating bearing	Non-Locating bearings	Weight (kg)	Dimensions (mm)						Installation dimensions d1
Locating bearing	Non-Locating bearings	Weight (kg)	d	K ball diameter	B/C	B1	rs	S1	Installation dimensions d1
SL05016 E		1.7	80	120	45		1.1		94
	SL06016 E	1.8	80	120	45	55	1.1	2.5	88
SL05018 E		2.8	90	140	50		1.5		106
	SL06018 E	2.95	90	140	50	60	1.5	2.5	100
SL05020 E		3.3	100	150	55		1.5		116
	SL06020 E	3.45	100	150	55	65	1.5	2.5	110
SL05022 E		4.9	110	170	60		2		130
	SL06022 E	5.2	110	170	60	75	2	5	124
SL05024 E		5.2	120	180	60		2		138
	SL06024 E	5.5	120	180	60	75	2	5	132
SL05026 E		7.4	130	200	65		2		154
	SL06026 E	7.8	130	200	65	80	2	5	146
SL05028 E		8.2	140	210	70		2		160
	SL06028 E	8.55	140	210	70	85	2	5	152
SL05030 E		10	150	225	75		2.1		175
	SL06030 E	10.5	150	225	75	90	2.1	5	166
SL05032 E		13.7	160	240	90		2.1		184
	SL06032 E	14.3	160	240	90	110	2.1	7.5	175
SL05034 E		17.4	170	260	95		2.1		196
	SL06034 E	18.1	170	260	95	115	2.1	7.5	186
SL05036 E		22.1	180	280	100		2.1		210
	SL06036 E	23	180	280	100	120	2.1	7.5	200
SL05038 E		25.1	190	290	110		2.1		222
	SL06038 E	26.5	190	290	110	135	2.1	10	212
SL05040 E		30.5	200	310	115		2.1		234
	SL06040 E	32	200	310	115	140	2.1	10	222
SL05044 E		40	220	340	125		3		262
	SL06044 E	42	220	340	125	150	3	10	248
SL05048 E		44	240	360	130		3		278
	SL06048 E	46	240	360	130	155	3	10	266

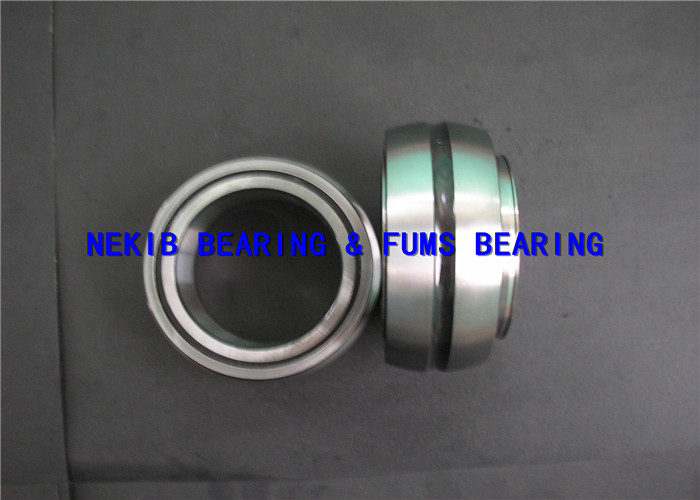

Product pictures:
